“NanoCam, The First HDMI Headmounted HD Camera for Dentists”

Adapters available for Designs for Vision, Orascoptic/ Surgical Acuity, Zeiss, Surgitel, Perioptics and other brands.

  • 1080p High Definition
  • 30fps Frame Rate
  • 24 Bit Color
  • Auto Exposure
  • Lockable Camera Focus
  • Aircraft Grade Aluminium

Nanocam



Technical SpecificationsCamera Specifications

  • Size: 22mm Diameter
  • Weight: Entire Camera with Headlight weighs 1.5 oz.

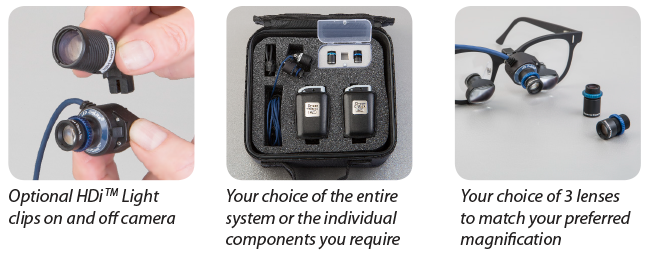

  • Three Lens System – 2.5x, 3.5x, and 4.5x Optically Calibrated to Match Designs for Vision Telescopes
  • LED DayLite® UltraMini Colour Corrected to Enhance Video Images
  • Microphone – Mutable, Beam Forming Microphone
  • Mount – Coaxially Mounted to Your Magnification
    or Lightweight Headset
    LoupeCam_USB
  • HIPA Compliant

Recording Sizes

  • VGA 640 x 480 Pixels@30fps: 30GB/15 Min 120GB/1 Hour
  • HD 1280 x 720 Pixels@30fps: 68GB/15 Min 272GB/1 Hour



Minimum System Requirements

  • Windows® 7 OS minimumWindowsIcon
  • 1 GB RAM minimum
  • Dual Core 1.7 GHz Processor or better
  • 20 GB minimum Availalble HDD
    MACIcon
  • 200 MB Hard Drive Space
  • 2 Available USB 2.0 Ports



Optical Lenses

Magnification

Working Distance Field of View
2.5x Optional 16″/40cm 3.5″ x 5.0″/8.8cm x 12.7cm
3x Standard 16″/40cm 2.5″ x 4.0″/6.35cm x 10cm
4x Optional 16″/40cm 1.5″ x 2.5″/3.8cm x 2.5cm



Accessories

USB Footpedal

LoupeCam_AlternativePedastalHands-Free Operation with Audio Confirmation of record, pause, mute and still image
